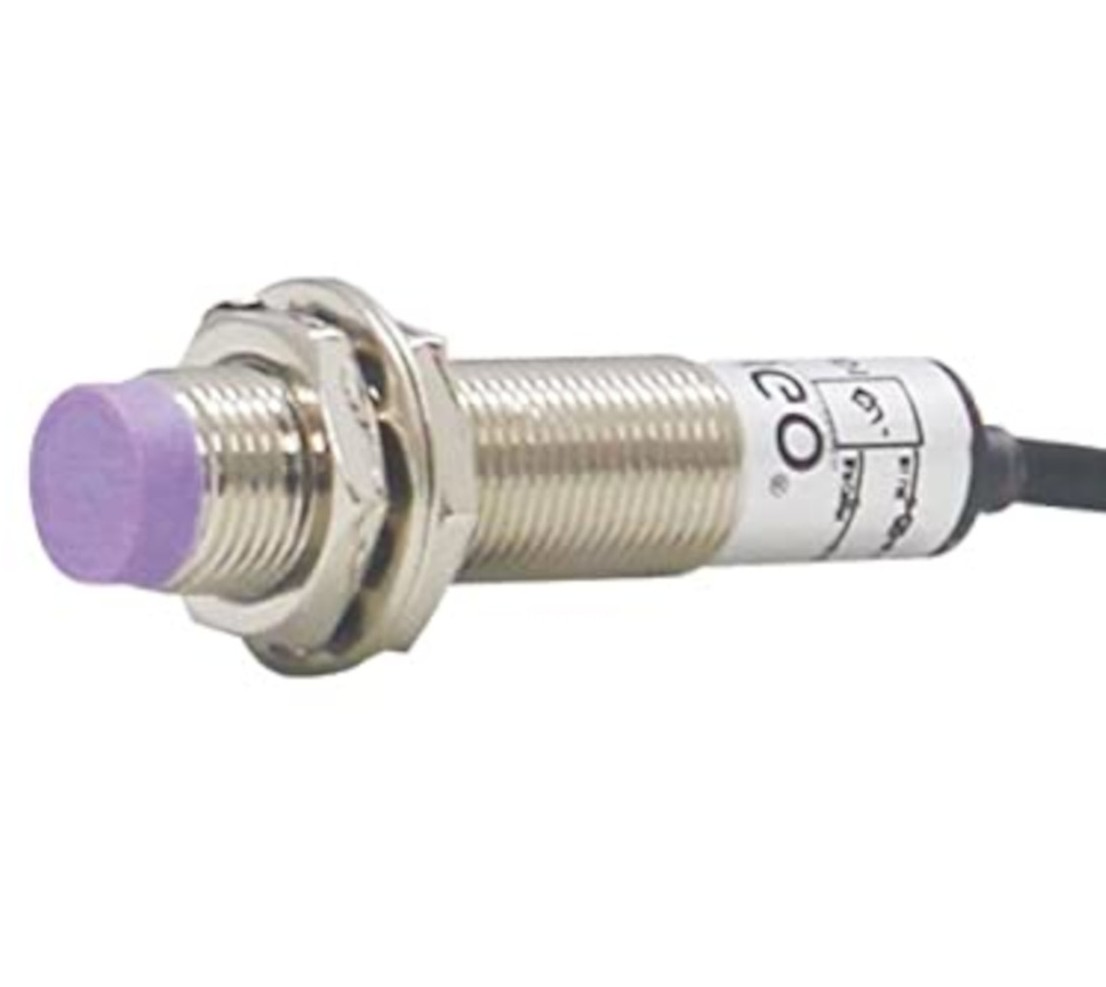

Inductive proximity sensor 12 Dia NPN make jigo (JG-GI12-04P1 PNP 4mm Proximity Sensor – DC 6-36V)

G-GI12-04N1 NPN 4mm Proximity Sensor – DC 6-36V

JG-GI12-04N1 NPN 4mm Proximity Sensor – DC 6-36V Inductive 4mm NPN-NO Proximity Sensor Switch is a component widely used in the automatic control industry for detecting, controlling, and non-contact switching. When the proximity switch is close to some target object, it will send out a control signal. When the metal approaches the near-proximity switch sensing area, an Edy Current is induced in the metal. Which in turn disturbs the magnetic field produced by the Inductive Proximity Sensor. This change is sensed by the sensor. These inductive proximity switches can be non-contact, have no pressure, no spark quickly issued the electrical command. Accurately reflect the position and the stroke movement mechanism. Positioning accuracy, operating frequency, service life. Easy to install and suitable for harsh environments. This 4mm proximity sensor can detect a variety of metals, miniature size, long life, low price, shielded type installation, anti-interference ability, 4mm detection distance, used for precise positioning of molds, precision machine tools, and robots. Tags, inductive proximity switch, inductive proximity sensor, NPN proximity switch, Normally Open proximity sensor, 4mm NPN Proximity Sensor.

Features/Specs:

• Manufacturer Part No: JG-GI12-04N1
• Manufacturer: Jigo
• Material: Metal and plastic
• Operating Voltage: 6 ~ 36 VDC
• Output Type: NPN Normally Open
• Detection object: Metal Objects
• Detection distance: 4 mm
• Output Current: 300 mA
• Total Length of Sensor: 55mm
• Thread length: 35mm.
• Outer (Theard) Diameter: M12
• Polarity protection: yes
• Surge protection: yes
• Short circuit protection: yes
• High repeated positioning accuracy
• High switching frequency
• Wide voltage range
• Antivibration, dust, water, and oil prevention
• Reverse power protection, short circuit protection, directly connecting with PLC
• Can replace small switches and limit switches
• Working temperature(°C): -25 ~ +70, ±15%
• Cable Length: Approx 1.5 Meter
• Dimensions: 12 mm Screw Diameter
